the Best Tilting Mount Review - SANUS VMT5B1 Tilting Mount

With the Sanus VMT5 Premium Series Tilt Mount, you’ll be able to finally get that mid-range TV up on your wall all while looking sleek and hiding some cable that would otherwise look like a mess.

It features universal mounting which means it covers a huge range of VESA patterns. So if you have an odd-ball TV, odds are that this wall mount will support your TV. It is best for 40 inch TVs through 50 inch TVs and only supported up to 75 pounds or 34 kilograms.

SANUS VMT5B1 – Review

Available on Amazon

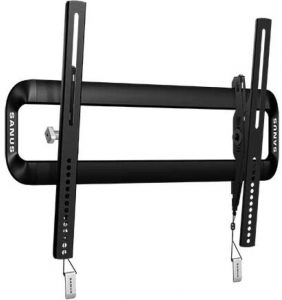

Sanus VMT5B1 40-50 Inches Premium Series Tilt Wall Mount for Flat-Panel TV (Black)

  • Too low to display
  • 13 new from $89.99
  • Product Brand: SANUS
  • Model Code: VST4
  • Wall Mount Width: 23.25″ / 59.06cm
  • Wall Mount Height: 17.95″ / 45.59cm
  • Wall Mount Depth: 2.19″ / 5.56cm
  • Wall Mount Weight: 8.97lbs / 4.07kg
  • TV Size Range: 40″ – 50″ / 101.60cm – 127.00cm
  • Maximum TV Weight: 75lbs / 34.02kg
  • Degree of Tilt: 7° / -12°

Supported VESA Patterns:

  • VESA 100 x 100
  • VESA 100 x 200
  • VESA 200 x 100
  • VESA 200 x 200
  • VESA 200 x 300
  • VESA 200 x 400
  • VESA 300 x 100
  • VESA 300 x 200
  • VESA 300 x 300
  • VESA 300 x 400
  • VESA 400 x 100
  • VESA 400 x 200
  • VESA 400 x 300
  • VESA 400 x 400
  • VESA 500 x 100
  • VESA 500 x 200
  • VESA 500 x 300
  • VESA 500 x 400

Tools You Will Need For Installation

To make things as easy as possible you are going to need some tools. Below are the needed tools to properly set the wall mount up.

  • 7/32″ Drill Bit
  • 3/8″ Drill Bit
  • 3/8″ Masonry Bit
  • 1/2″ Socket Wrench
  • Electric Drill
  • Hammer
  • Phillips Head Screwdriver
  • Tape Measure

How To Install The Sanus VMT5B1

  • You first connect the wall mount bracket to the TV.
  • Then you mount the wall plate to the wall as the name suggests.
  • Then you attach the wall mount bracket to the wall plate.
  • It’s as simple as that. Below are more details instructions if you get stuck along the way.

Step 1 – Wall Bracket

  • 1-1 Find the TV screws and insert them into the back of the TV.
  • 1-2 Determine if the provided spacers are needed.
  • 1-3 Measure your TV’s VESA pattern
  • 1-4 Using the correct bracket, attach to the VESA holes on your TV.

Step 2 – Wall Plate

  • 2-1 If using the stud finder, find the studs in your wall
  • 2-2 If you have concrete walls, measure and apply wall anchors.
  • 2-3 Once holes are made or anchored, attach wall plate to the wall.
  • Step 3- Attach Bracket to Wall Plate | HEAVY! You may need assistance with this step.

3-1 Final Step

The locking tab needs to be in the unlocked position before attaching the TV to the wall plate. Once the TV is on the wall plate, the locking tab needs to be in a locked position.

Design and Construction

SANUS VMT5B1 - Design and Construction

The Sanus VMT5B1 Premium Series Tilt Mount features a sleek and minimalistic design that complements the aesthetics of your TV and room. With its black color, it can easily blend in with any décor.

The construction of the VMT5B1 is sturdy and durable, ensuring the safety and security of your TV once it’s mounted. It is made from high-quality materials that can support TVs within the size range of 40 inches to 50 inches, with a maximum weight capacity of 75 pounds or 34 kilograms.

The wall mount is designed to provide a low-profile installation, keeping your TV close to the wall for a clean and streamlined look. It has a slim profile with a depth of 2.19 inches or 5.56 centimeters, allowing your TV to sit close to the wall without protruding too much.

Locking Mechanism and Security

The Sanus VMT5B1 Premium Series Tilt Mount is equipped with a locking mechanism that ensures the stability and security of your mounted TV. The locking mechanism plays a crucial role in keeping the TV securely attached to the wall plate, preventing any accidental dislodging or movement.

The mounting brackets of the VMT5B1 securely attach to the VESA mounting holes on the back of your TV. Once properly attached, the locking mechanism engages to hold the brackets in place, providing a secure and stable mounting solution. This helps to prevent any unwanted shifting or tilting of the TV once it is mounted on the wall.

To ensure proper installation and secure locking, it is important to follow the instructions provided by Sanus during the installation process. The locking mechanism should be in the unlocked position when attaching the TV to the wall plate. Once the TV is properly mounted, the locking mechanism needs to be engaged and locked into place to secure the TV.

The locking mechanism adds an additional layer of security to the wall mount, providing peace of mind that your TV is safely mounted and will remain in place. This is especially important in households with children or in areas prone to vibrations or movement.

Supported TV Weight and Load Capacity

Supported TV Weight and Load Capacity

The Sanus VMT5B1 Premium Series Tilt Mount is designed to support a wide range of TVs within the size range of 40 inches to 50 inches. When it comes to the weight capacity, this wall mount can securely hold TVs weighing up to 75 pounds or 34 kilograms.

It’s crucial to ensure that your TV falls within the supported weight and size range specified by the manufacturer. Exceeding the weight capacity can put excessive strain on the mount and compromise its stability, potentially leading to damage or accidents. Therefore, it is important to verify the weight of your TV before mounting it on the VMT5B1.

Additionally, it’s worth noting that the weight capacity provided is for the TV itself and does not take into account any additional accessories or devices that might be attached to the TV, such as soundbars or gaming consoles. Make sure to factor in the combined weight of your TV and any accessories to ensure it remains within the specified weight limit.


How far does the TV extend from the wall when using the VMT5B1 tilt mount?

The VMT5B1 tilt mount is designed to provide a low-profile installation, keeping your TV close to the wall. It has a slim depth of 2.19 inches or 5.56 centimeters, allowing the TV to sit relatively flush against the wall.

Can I rotate the TV horizontally with the VMT5B1 tilt mount?

No, the VMT5B1 tilt mount is specifically designed for tilting the TV up and down. It does not support horizontal rotation or swivel functionality.

What tools are required for installing  tilt mount?

The installation of the VMT5B1 tilt mount typically requires the following tools: a 7/32″ drill bit, a 3/8″ drill bit, a 3/8″ masonry bit (if mounting on concrete walls), a 1/2″ socket wrench, an electric drill, a hammer, a Phillips head screwdriver, and a tape measure. Make sure to use the appropriate tools and follow the installation instructions for a safe and secure installation.

Can I mount the VMT5B1 tilt mount on a brick wall?

The VMT5B1 tilt mount is primarily designed for drywall and concrete walls. Mounting it on a brick wall may require additional tools and hardware, such as masonry screws or anchors suitable for brick. It’s recommended to consult a professional or the manufacturer for guidance specific to your wall type.

Is it compatible with curved TVs?

The VMT5B1 tilt mount is primarily designed for flat-panel TVs. While it may be possible to use it with some curved TVs, the compatibility will depend on the specific curvature and mounting hole pattern of the TV. It’s best to consult the TV manufacturer or the Sanus support team for compatibility information regarding your specific curved TV model.

Can I adjust the height of the TV once it’s mounted with the VMT5B1 tilt mount?

The VMT5B1 tilt mount is designed for tilt adjustments rather than vertical height adjustments. Once the TV is mounted, its height remains fixed. If you need to change the TV’s height, you may need to remount the TV at a different height on the wall. It’s important to think about the viewing angle to get the best experience from your entertainment setup.

Is it suitable for outdoor use?

The VMT5B1 tilt mount is primarily designed for indoor use. If you intend to use it in an outdoor setting, it’s important to consider environmental factors such as exposure to weather conditions, temperature fluctuations, and moisture. Outdoor-specific wall mounts may be more suitable for outdoor installations to ensure proper durability and protection against the elements.

Review Summary

Though limited by its design the VMT5B1 does well for itself by supporting a larger number of VESA patterns than its smaller brother the VSTA-B1. This offers more to you in that one metric alone. Besides that, it offers the same materials and options to the pan. So a slightly better wall mount in the end.

  • There is a good number of supported VESA patterns
  • Options to tilt up and down
  • Easy to install
  • Limited design
  • Price has been difficult over time
